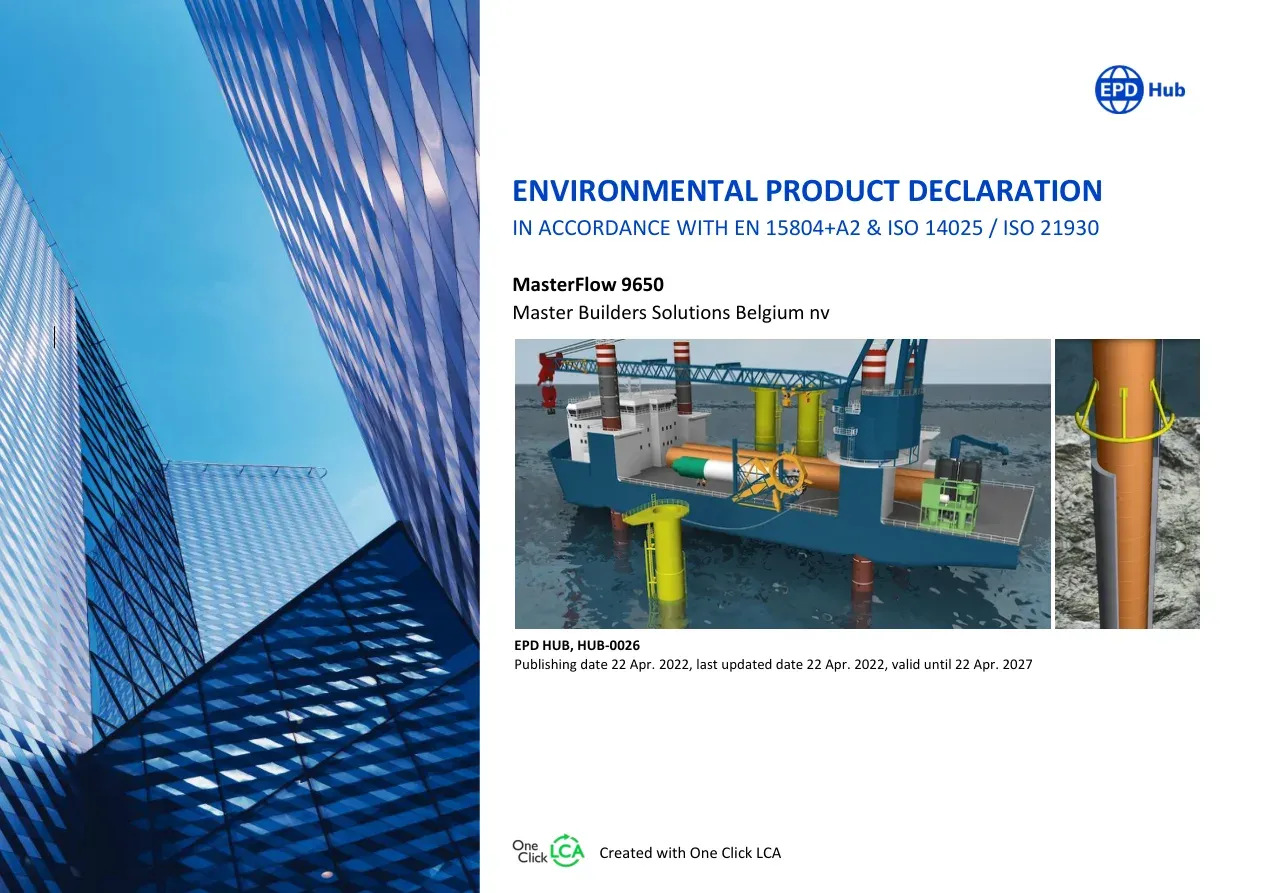

ENVIRONMENTAL PRODUCT DECLARATION IN ACCORDANCE WITH EN 15804+A2 & ISO 14025 / ISO 21930 MasterFlow 9650 Master Builders Solutions Belgium nv Created with One Click LCA EPD HUB, HUB-0026 Publishing date 22 Apr. 2022, last updated date 22 Apr. 2022, valid until 22 Apr. 2027

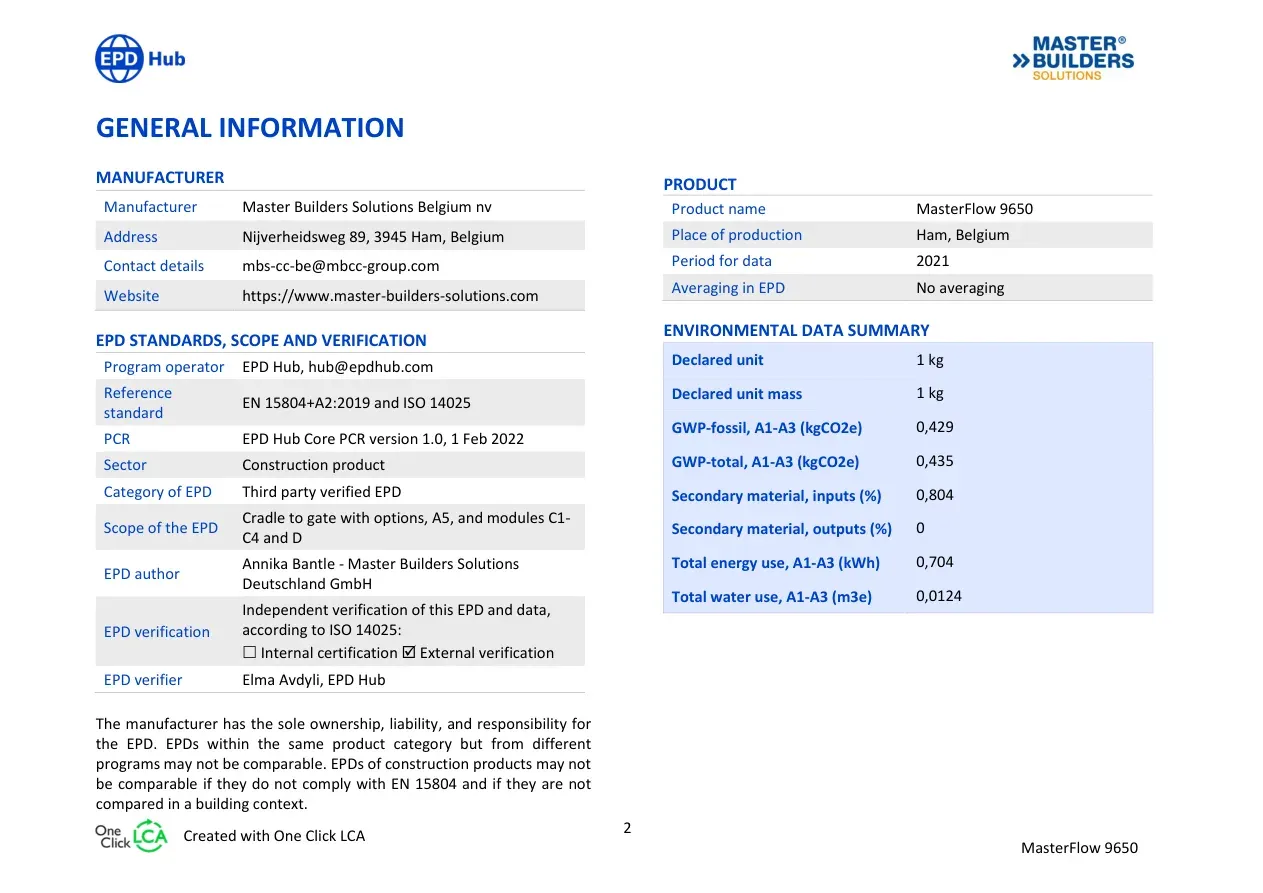

2 MasterFlow 9650 Created with One Click LCA GENERAL INFORMATION MANUFACTURER Manufacturer Master Builders Solutions Belgium nv Address Nijverheidsweg 89, 3945 Ham, Belgium Contact details mbs-cc-be@mbcc-group.com Website https://www.master-builders-solutions.com EPD STANDARDS, SCOPE AND VERIFICATION Program operator EPD Hub, hub@epdhub.com Reference standard EN 15804+A2:2019 and ISO 14025 PCR EPD Hub Core PCR version 1.0, 1 Feb 2022 Sector Construction product Category of EPD Third party verified EPD Scope of the EPD Cradle to gate with options, A5, and modules C1-C4 and D EPD author Annika Bantle - Master Builders Solutions Deutschland GmbH EPD verification Independent verification of this EPD and data, according to ISO 14025: Internal certification External verification EPD verifier Elma Avdyli, EPD Hub The manufacturer has the sole ownership, liability, and responsibility for the EPD. EPDs within the same product category but from different programs may not be comparable. EPDs of construction products may not be comparable if they do not comply with EN 15804 and if they are not compared in a building context. PRODUCT Product name MasterFlow 9650 Place of production Ham, Belgium Period for data 2021 Averaging in EPD No averaging ENVIRONMENTAL DATA SUMMARY Declared unit 1 kg Declared unit mass 1 kg GWP-fossil, A1-A3 (kgCO2e) 0,429 GWP-total, A1-A3 (kgCO2e) 0,435 Secondary material, inputs (%) 0,804 Secondary material, outputs (%) 0 Total energy use, A1-A3 (kWh) 0,704 Total water use, A1-A3 (m3e) 0,0124

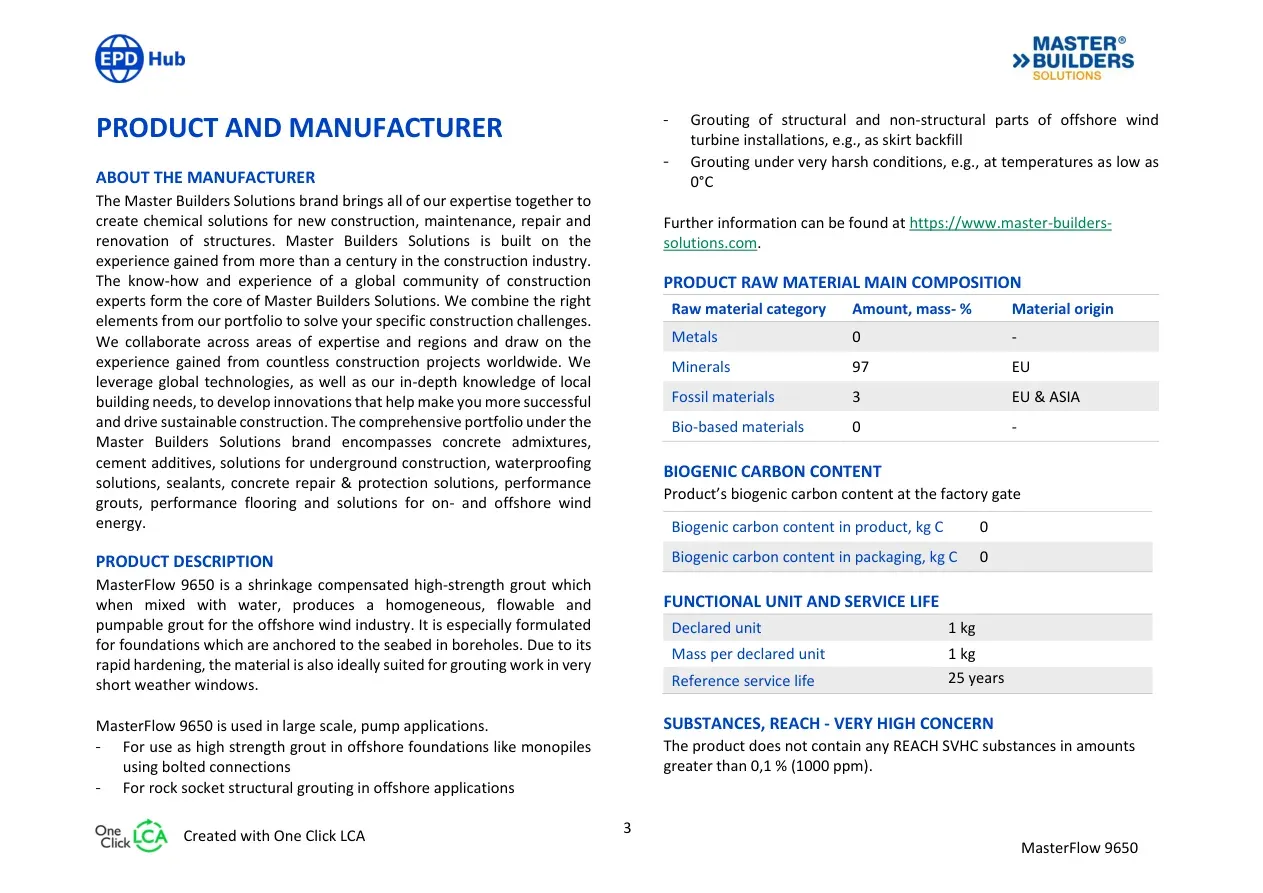

3 MasterFlow 9650 Created with One Click LCA PRODUCT AND MANUFACTURER ABOUT THE MANUFACTURER The Master Builders Solutions brand brings all of our expertise together to create chemical solutions for new construction, maintenance, repair and renovation of structures. Master Builders Solutions is built on the experience gained from more than a century in the construction industry. The know-how and experience of a global community of construction experts form the core of Master Builders Solutions. We combine the right elements from our portfolio to solve your specific construction challenges. We collaborate across areas of expertise and regions and draw on the experience gained from countless construction projects worldwide. We leverage global technologies, as well as our in-depth knowledge of local building needs, to develop innovations that help make you more successful and drive sustainable construction. The comprehensive portfolio under the Master Builders Solutions brand encompasses concrete admixtures, cement additives, solutions for underground construction, waterproofing solutions, sealants, concrete repair & protection solutions, performance grouts, performance flooring and solutions for on- and offshore wind energy. PRODUCT DESCRIPTION MasterFlow 9650 is a shrinkage compensated high-strength grout which when mixed with water, produces a homogeneous, flowable and pumpable grout for the offshore wind industry. It is especially formulated for foundations which are anchored to the seabed in boreholes. Due to its rapid hardening, the material is also ideally suited for grouting work in very short weather windows. MasterFlow 9650 is used in large scale, pump applications. - For use as high strength grout in offshore foundations like monopiles using bolted connections - For rock socket structural grouting in offshore applications - Grouting of structural and non-structural parts of offshore wind turbine installations, e.g., as skirt backfill - Grouting under very harsh conditions, e.g., at temperatures as low as 0°C Further information can be found at https://www.master-builders-solutions.com. PRODUCT RAW MATERIAL MAIN COMPOSITION Raw material category Amount, mass- % Material origin Metals 0 - Minerals 97 EU Fossil materials 3 EU & ASIA Bio-based materials 0 - BIOGENIC CARBON CONTENT Product’s biogenic carbon content at the factory gate Biogenic carbon content in product, kg C 0 Biogenic carbon content in packaging, kg C 0 FUNCTIONAL UNIT AND SERVICE LIFE Declared unit 1 kg Mass per declared unit 1 kg Reference service life 25 years SUBSTANCES, REACH - VERY HIGH CONCERN The product does not contain any REACH SVHC substances in amounts greater than 0,1 % (1000 ppm).

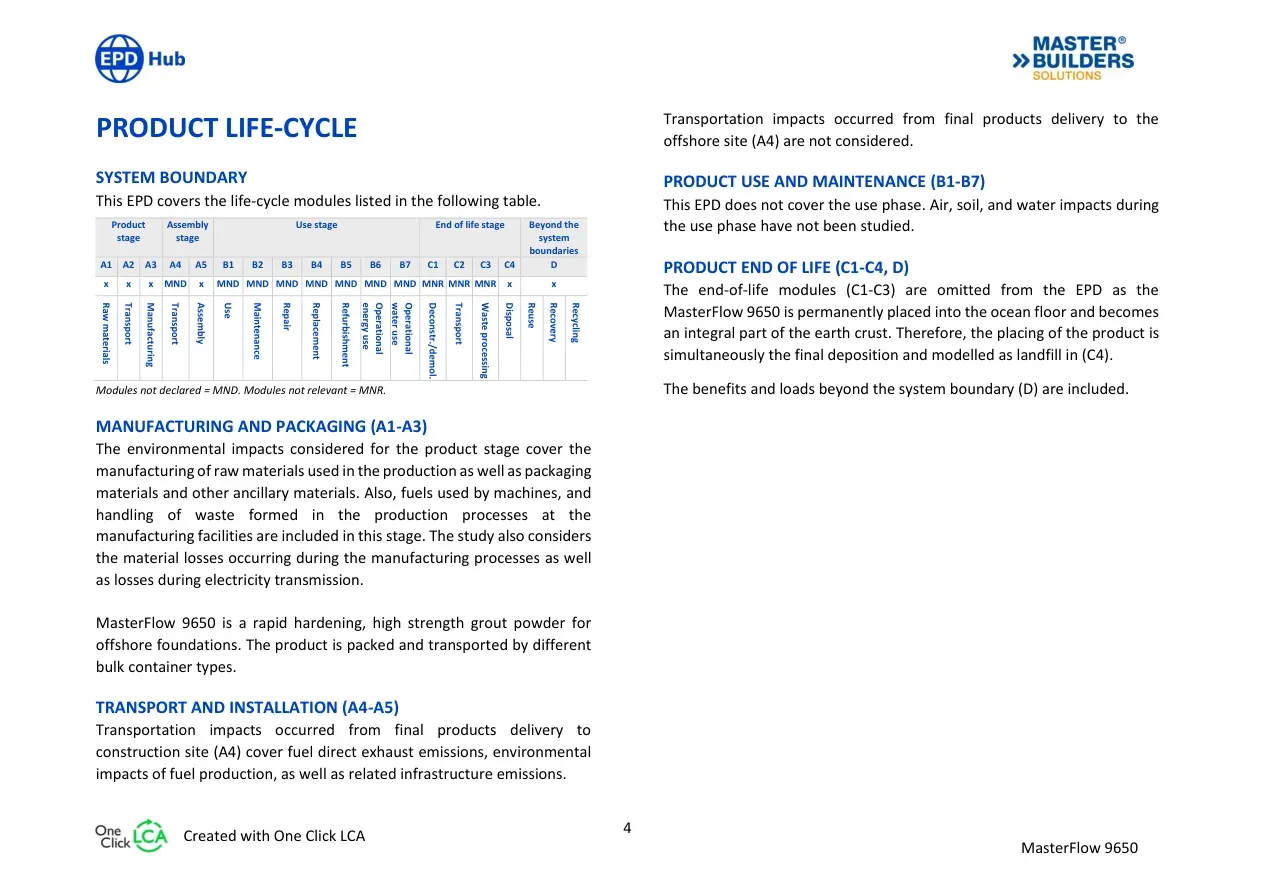

4 MasterFlow 9650 Created with One Click LCA PRODUCT LIFE-CYCLE SYSTEM BOUNDARY This EPD covers the life-cycle modules listed in the following table. Product stage Assembly stage Use stage End of life stage Beyond the system boundaries A1 A2 A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D x x x MND x MND MND MND MND MND MND MND MNR MNR MNR x x Raw materials Transport Manufacturing Transport Assembly Use Maintenance Repair Replacement Refurbishment Operational energy use Operational water use Deconstr./demol. Transport Waste processing Disposal Reuse Recovery Recycling Modules not declared = MND. Modules not relevant = MNR. MANUFACTURING AND PACKAGING (A1-A3) The environmental impacts considered for the product stage cover the manufacturing of raw materials used in the production as well as packaging materials and other ancillary materials. Also, fuels used by machines, and handling of waste formed in the production processes at the manufacturing facilities are included in this stage. The study also considers the material losses occurring during the manufacturing processes as well as losses during electricity transmission. MasterFlow 9650 is a rapid hardening, high strength grout powder for offshore foundations. The product is packed and transported by different bulk container types. TRANSPORT AND INSTALLATION (A4-A5) Transportation impacts occurred from final products delivery to construction site (A4) cover fuel direct exhaust emissions, environmental impacts of fuel production, as well as related infrastructure emissions. Transportation impacts occurred from final products delivery to the offshore site (A4) are not considered. PRODUCT USE AND MAINTENANCE (B1-B7) This EPD does not cover the use phase. Air, soil, and water impacts during the use phase have not been studied. PRODUCT END OF LIFE (C1-C4, D) The end-of-life modules (C1-C3) are omitted from the EPD as the MasterFlow 9650 is permanently placed into the ocean floor and becomes an integral part of the earth crust. Therefore, the placing of the product is simultaneously the final deposition and modelled as landfill in (C4). The benefits and loads beyond the system boundary (D) are included.

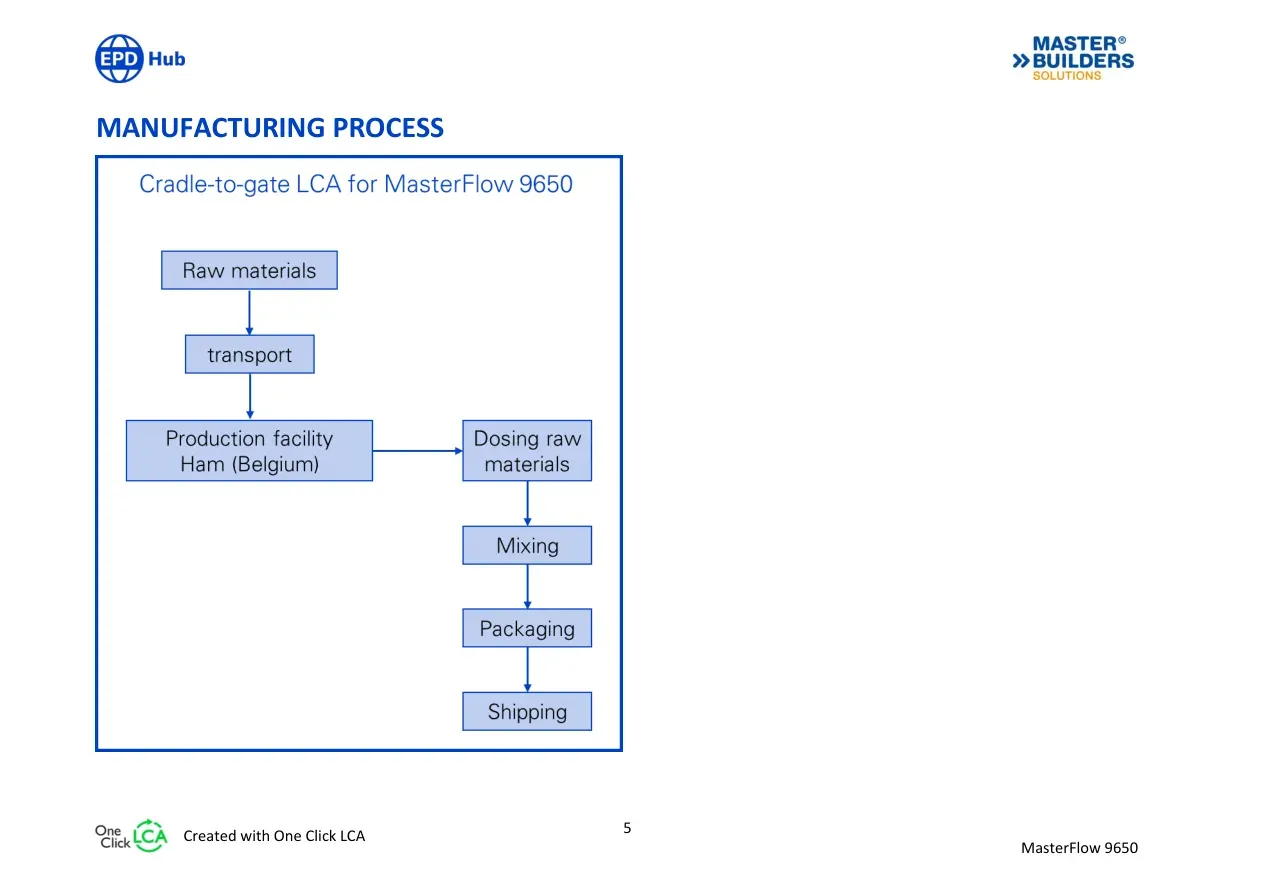

5 MasterFlow 9650 Created with One Click LCA MANUFACTURING PROCESS

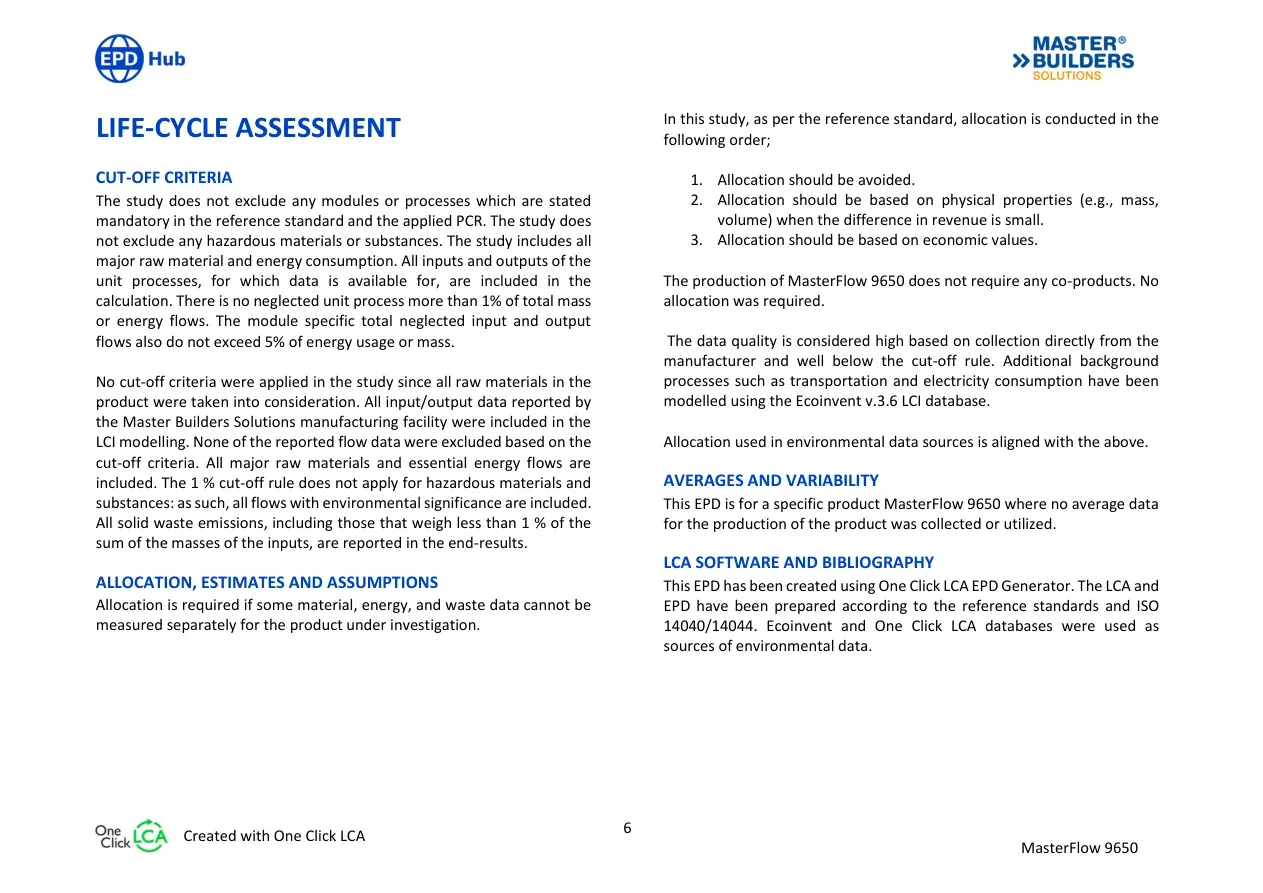

6 MasterFlow 9650 Created with One Click LCA LIFE-CYCLE ASSESSMENT CUT-OFF CRITERIA The study does not exclude any modules or processes which are stated mandatory in the reference standard and the applied PCR. The study does not exclude any hazardous materials or substances. The study includes all major raw material and energy consumption. All inputs and outputs of the unit processes, for which data is available for, are included in the calculation. There is no neglected unit process more than 1% of total mass or energy flows. The module specific total neglected input and output flows also do not exceed 5% of energy usage or mass. No cut-off criteria were applied in the study since all raw materials in the product were taken into consideration. All input/output data reported by the Master Builders Solutions manufacturing facility were included in the LCI modelling. None of the reported flow data were excluded based on the cut-off criteria. All major raw materials and essential energy flows are included. The 1 % cut-off rule does not apply for hazardous materials and substances: as such, all flows with environmental significance are included. All solid waste emissions, including those that weigh less than 1 % of the sum of the masses of the inputs, are reported in the end-results. ALLOCATION, ESTIMATES AND ASSUMPTIONS Allocation is required if some material, energy, and waste data cannot be measured separately for the product under investigation. In this study, as per the reference standard, allocation is conducted in the following order; 1. Allocation should be avoided. 2. Allocation should be based on physical properties (e.g., mass, volume) when the difference in revenue is small. 3. Allocation should be based on economic values. The production of MasterFlow 9650 does not require any co-products. No allocation was required. The data quality is considered high based on collection directly from the manufacturer and well below the cut-off rule. Additional background processes such as transportation and electricity consumption have been modelled using the Ecoinvent v.3.6 LCI database. Allocation used in environmental data sources is aligned with the above. AVERAGES AND VARIABILITY This EPD is for a specific product MasterFlow 9650 where no average data for the production of the product was collected or utilized. LCA SOFTWARE AND BIBLIOGRAPHY This EPD has been created using One Click LCA EPD Generator. The LCA and EPD have been prepared according to the reference standards and ISO 14040/14044. Ecoinvent and One Click LCA databases were used as sources of environmental data.

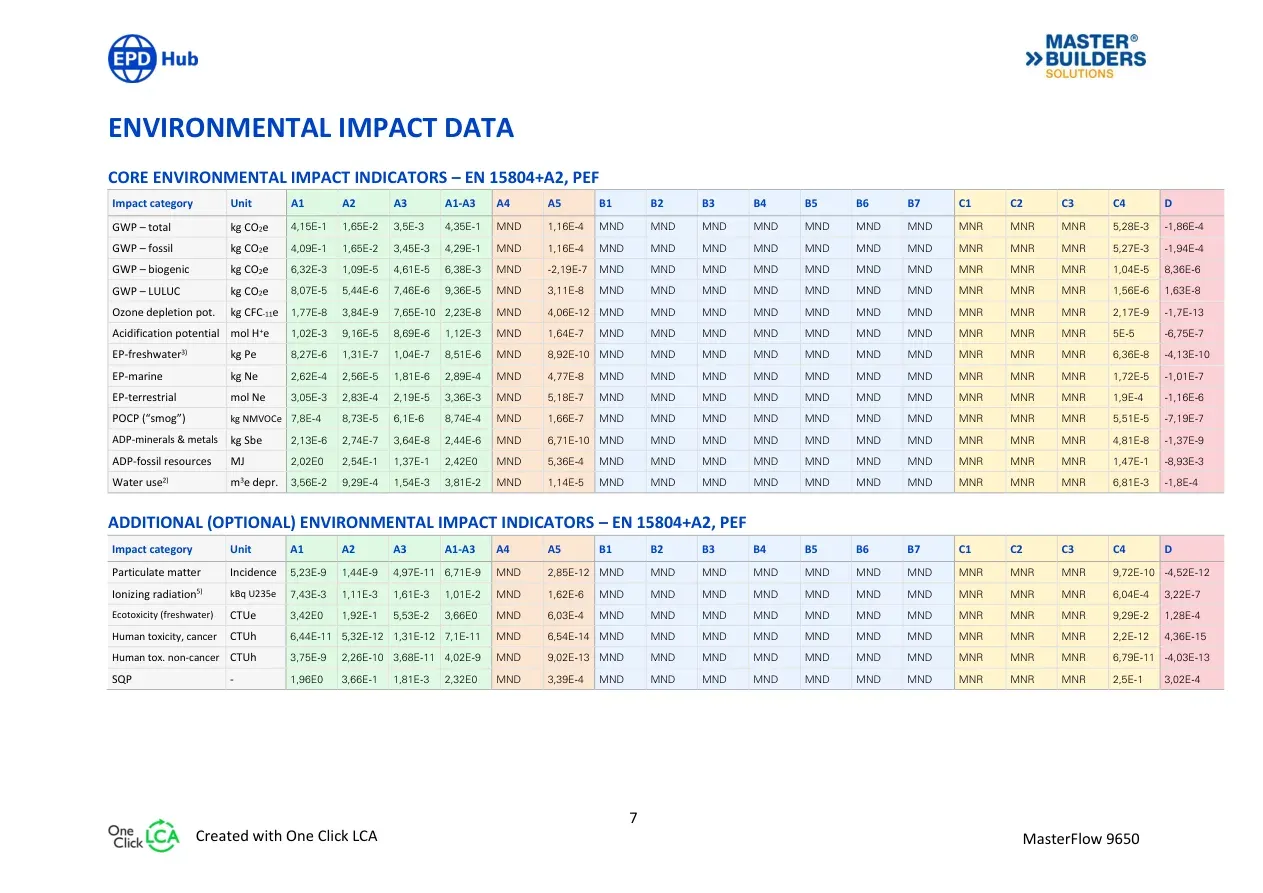

7 MasterFlow 9650 Created with One Click LCA ENVIRONMENTAL IMPACT DATA CORE ENVIRONMENTAL IMPACT INDICATORS – EN 15804+A2, PEF Impact category Unit A1 A2 A3 A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D GWP – total kg CO2e 4,15E‐1 1,65E‐2 3,5E‐3 4,35E‐1 MND 1,16E‐4 MND MND MND MND MND MND MND MNR MNR MNR 5,28E‐3 ‐1,86E‐4 GWP – fossil kg CO2e 4,09E‐1 1,65E‐2 3,45E‐3 4,29E‐1 MND 1,16E‐4 MND MND MND MND MND MND MND MNR MNR MNR 5,27E‐3 ‐1,94E‐4 GWP – biogenic kg CO2e 6,32E‐3 1,09E‐5 4,61E‐5 6,38E‐3 MND ‐2,19E‐7 MND MND MND MND MND MND MND MNR MNR MNR 1,04E‐5 8,36E‐6 GWP – LULUC kg CO2e 8,07E‐5 5,44E‐6 7,46E‐6 9,36E‐5 MND 3,11E‐8 MND MND MND MND MND MND MND MNR MNR MNR 1,56E‐6 1,63E‐8 Ozone depletion pot. kg CFC-11e 1,77E‐8 3,84E‐9 7,65E‐10 2,23E‐8 MND 4,06E‐12 MND MND MND MND MND MND MND MNR MNR MNR 2,17E‐9 ‐1,7E‐13 Acidification potential mol H+e 1,02E‐3 9,16E‐5 8,69E‐6 1,12E‐3 MND 1,64E‐7 MND MND MND MND MND MND MND MNR MNR MNR 5E‐5 ‐6,75E‐7 EP-freshwater3) kg Pe 8,27E‐6 1,31E‐7 1,04E‐7 8,51E‐6 MND 8,92E‐10 MND MND MND MND MND MND MND MNR MNR MNR 6,36E‐8 ‐4,13E‐10 EP-marine kg Ne 2,62E‐4 2,56E‐5 1,81E‐6 2,89E‐4 MND 4,77E‐8 MND MND MND MND MND MND MND MNR MNR MNR 1,72E‐5 ‐1,01E‐7 EP-terrestrial mol Ne 3,05E‐3 2,83E‐4 2,19E‐5 3,36E‐3 MND 5,18E‐7 MND MND MND MND MND MND MND MNR MNR MNR 1,9E‐4 ‐1,16E‐6 POCP (“smog”) kg NMVOCe 7,8E‐4 8,73E‐5 6,1E‐6 8,74E‐4 MND 1,66E‐7 MND MND MND MND MND MND MND MNR MNR MNR 5,51E‐5 ‐7,19E‐7 ADP-minerals & metals kg Sbe 2,13E‐6 2,74E‐7 3,64E‐8 2,44E‐6 MND 6,71E‐10 MND MND MND MND MND MND MND MNR MNR MNR 4,81E‐8 ‐1,37E‐9 ADP-fossil resources MJ 2,02E0 2,54E‐1 1,37E‐1 2,42E0 MND 5,36E‐4 MND MND MND MND MND MND MND MNR MNR MNR 1,47E‐1 ‐8,93E‐3 Water use2) m3e depr. 3,56E‐2 9,29E‐4 1,54E‐3 3,81E‐2 MND 1,14E‐5 MND MND MND MND MND MND MND MNR MNR MNR 6,81E‐3 ‐1,8E‐4 ADDITIONAL (OPTIONAL) ENVIRONMENTAL IMPACT INDICATORS – EN 15804+A2, PEF Impact category Unit A1 A2 A3 A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D Particulate matter Incidence 5,23E‐9 1,44E‐9 4,97E‐11 6,71E‐9 MND 2,85E‐12 MND MND MND MND MND MND MND MNR MNR MNR 9,72E‐10 ‐4,52E‐12 Ionizing radiation5) kBq U235e 7,43E‐3 1,11E‐3 1,61E‐3 1,01E‐2 MND 1,62E‐6 MND MND MND MND MND MND MND MNR MNR MNR 6,04E‐4 3,22E‐7 Ecotoxicity (freshwater) CTUe 3,42E0 1,92E‐1 5,53E‐2 3,66E0 MND 6,03E‐4 MND MND MND MND MND MND MND MNR MNR MNR 9,29E‐2 1,28E‐4 Human toxicity, cancer CTUh 6,44E‐11 5,32E‐12 1,31E‐12 7,1E‐11 MND 6,54E‐14 MND MND MND MND MND MND MND MNR MNR MNR 2,2E‐12 4,36E‐15 Human tox. non-cancer CTUh 3,75E‐9 2,26E‐10 3,68E‐11 4,02E‐9 MND 9,02E‐13 MND MND MND MND MND MND MND MNR MNR MNR 6,79E‐11 ‐4,03E‐13 SQP - 1,96E0 3,66E‐1 1,81E‐3 2,32E0 MND 3,39E‐4 MND MND MND MND MND MND MND MNR MNR MNR 2,5E‐1 3,02E‐4

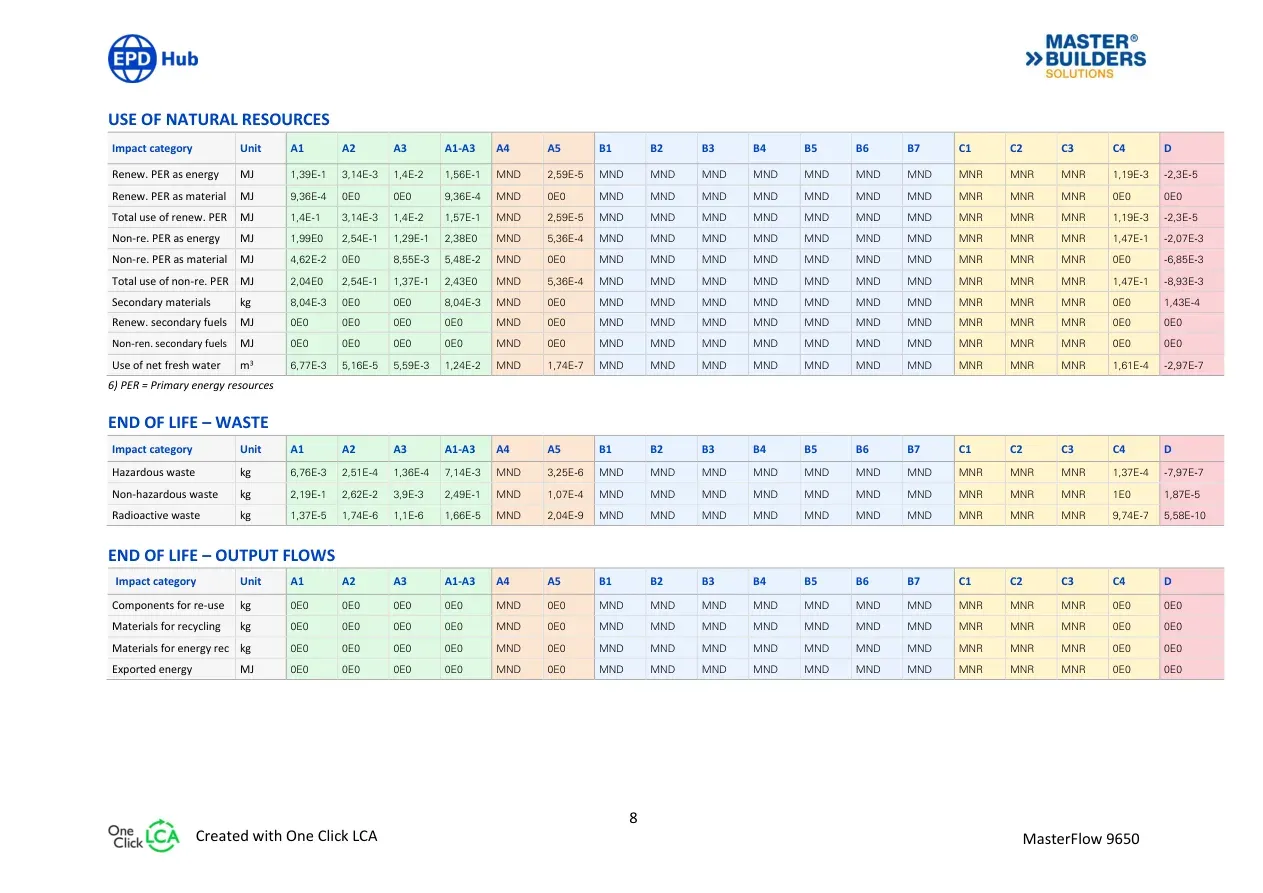

8 MasterFlow 9650 Created with One Click LCA USE OF NATURAL RESOURCES Impact category Unit A1 A2 A3 A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D Renew. PER as energy MJ 1,39E‐1 3,14E‐3 1,4E‐2 1,56E‐1 MND 2,59E‐5 MND MND MND MND MND MND MND MNR MNR MNR 1,19E‐3 ‐2,3E‐5 Renew. PER as material MJ 9,36E‐4 0E0 0E0 9,36E‐4 MND 0E0 MND MND MND MND MND MND MND MNR MNR MNR 0E0 0E0 Total use of renew. PER MJ 1,4E‐1 3,14E‐3 1,4E‐2 1,57E‐1 MND 2,59E‐5 MND MND MND MND MND MND MND MNR MNR MNR 1,19E‐3 ‐2,3E‐5 Non-re. PER as energy MJ 1,99E0 2,54E‐1 1,29E‐1 2,38E0 MND 5,36E‐4 MND MND MND MND MND MND MND MNR MNR MNR 1,47E‐1 ‐2,07E‐3 Non-re. PER as material MJ 4,62E‐2 0E0 8,55E‐3 5,48E‐2 MND 0E0 MND MND MND MND MND MND MND MNR MNR MNR 0E0 ‐6,85E‐3 Total use of non-re. PER MJ 2,04E0 2,54E‐1 1,37E‐1 2,43E0 MND 5,36E‐4 MND MND MND MND MND MND MND MNR MNR MNR 1,47E‐1 ‐8,93E‐3 Secondary materials kg 8,04E‐3 0E0 0E0 8,04E‐3 MND 0E0 MND MND MND MND MND MND MND MNR MNR MNR 0E0 1,43E‐4 Renew. secondary fuels MJ 0E0 0E0 0E0 0E0 MND 0E0 MND MND MND MND MND MND MND MNR MNR MNR 0E0 0E0 Non-ren. secondary fuels MJ 0E0 0E0 0E0 0E0 MND 0E0 MND MND MND MND MND MND MND MNR MNR MNR 0E0 0E0 Use of net fresh water m3 6,77E‐3 5,16E‐5 5,59E‐3 1,24E‐2 MND 1,74E‐7 MND MND MND MND MND MND MND MNR MNR MNR 1,61E‐4 ‐2,97E‐7 6) PER = Primary energy resources END OF LIFE – WASTE Impact category Unit A1 A2 A3 A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D Hazardous waste kg 6,76E‐3 2,51E‐4 1,36E‐4 7,14E‐3 MND 3,25E‐6 MND MND MND MND MND MND MND MNR MNR MNR 1,37E‐4 ‐7,97E‐7 Non-hazardous waste kg 2,19E‐1 2,62E‐2 3,9E‐3 2,49E‐1 MND 1,07E‐4 MND MND MND MND MND MND MND MNR MNR MNR 1E0 1,87E‐5 Radioactive waste kg 1,37E‐5 1,74E‐6 1,1E‐6 1,66E‐5 MND 2,04E‐9 MND MND MND MND MND MND MND MNR MNR MNR 9,74E‐7 5,58E‐10 END OF LIFE – OUTPUT FLOWS Impact category Unit A1 A2 A3 A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D Components for re-use kg 0E0 0E0 0E0 0E0 MND 0E0 MND MND MND MND MND MND MND MNR MNR MNR 0E0 0E0 Materials for recycling kg 0E0 0E0 0E0 0E0 MND 0E0 MND MND MND MND MND MND MND MNR MNR MNR 0E0 0E0 Materials for energy rec kg 0E0 0E0 0E0 0E0 MND 0E0 MND MND MND MND MND MND MND MNR MNR MNR 0E0 0E0 Exported energy MJ 0E0 0E0 0E0 0E0 MND 0E0 MND MND MND MND MND MND MND MNR MNR MNR 0E0 0E0

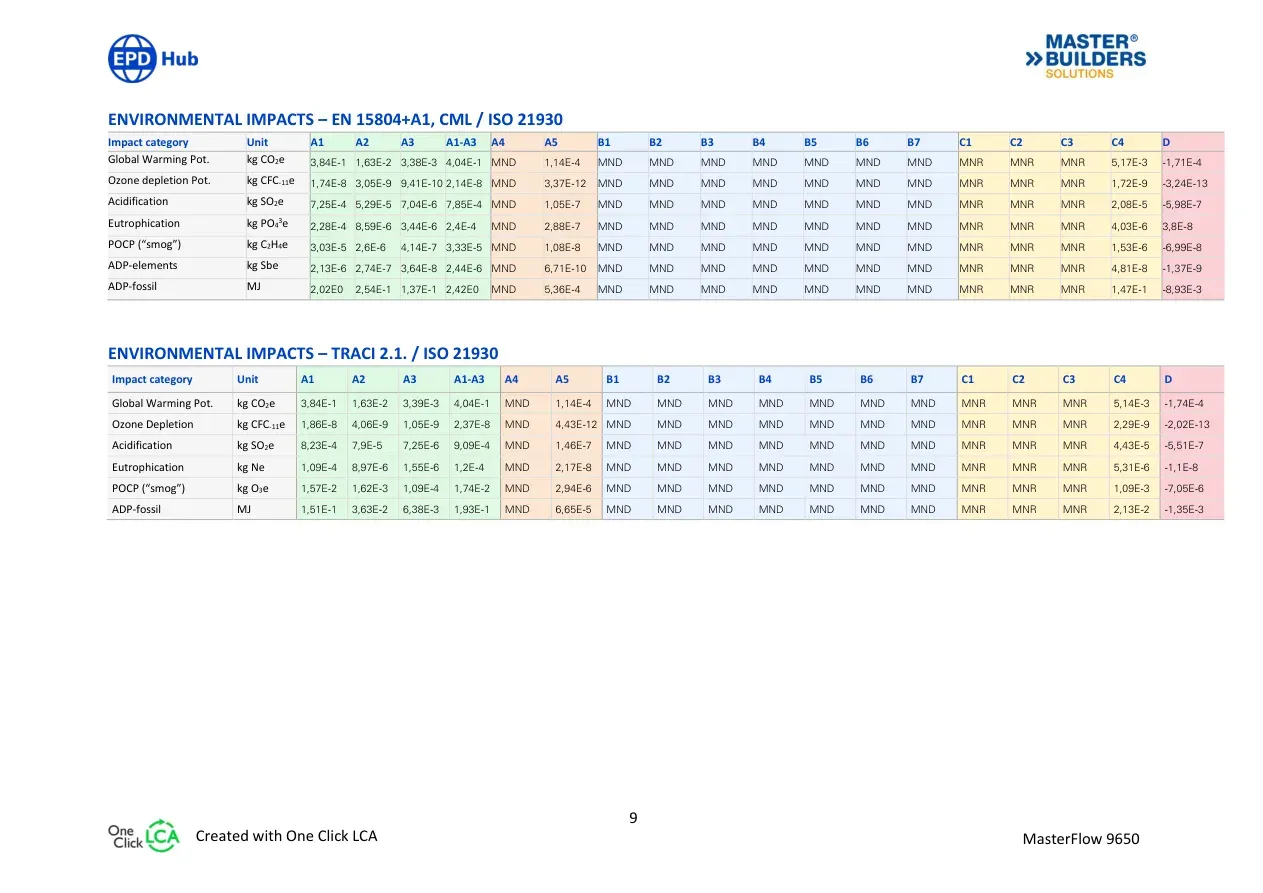

9 MasterFlow 9650 Created with One Click LCA ENVIRONMENTAL IMPACTS – EN 15804+A1, CML / ISO 21930 Impact category Unit A1 A2 A3 A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D Global Warming Pot. kg CO2e 3,84E‐1 1,63E‐2 3,38E‐3 4,04E‐1 MND 1,14E‐4 MND MND MND MND MND MND MND MNR MNR MNR 5,17E‐3 ‐1,71E‐4 Ozone depletion Pot. kg CFC-11e 1,74E‐8 3,05E‐9 9,41E‐10 2,14E‐8 MND 3,37E‐12 MND MND MND MND MND MND MND MNR MNR MNR 1,72E‐9 ‐3,24E‐13 Acidification kg SO2e 7,25E‐4 5,29E‐5 7,04E‐6 7,85E‐4 MND 1,05E‐7 MND MND MND MND MND MND MND MNR MNR MNR 2,08E‐5 ‐5,98E‐7 Eutrophication kg PO43e 2,28E‐4 8,59E‐6 3,44E‐6 2,4E‐4 MND 2,88E‐7 MND MND MND MND MND MND MND MNR MNR MNR 4,03E‐6 3,8E‐8 POCP (“smog”) kg C2H4e 3,03E‐5 2,6E‐6 4,14E‐7 3,33E‐5 MND 1,08E‐8 MND MND MND MND MND MND MND MNR MNR MNR 1,53E‐6 ‐6,99E‐8 ADP-elements kg Sbe 2,13E‐6 2,74E‐7 3,64E‐8 2,44E‐6 MND 6,71E‐10 MND MND MND MND MND MND MND MNR MNR MNR 4,81E‐8 ‐1,37E‐9 ADP-fossil MJ 2,02E0 2,54E‐1 1,37E‐1 2,42E0 MND 5,36E‐4 MND MND MND MND MND MND MND MNR MNR MNR 1,47E‐1 ‐8,93E‐3 ENVIRONMENTAL IMPACTS – TRACI 2.1. / ISO 21930 Impact category Unit A1 A2 A3 A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D Global Warming Pot. kg CO2e 3,84E‐1 1,63E‐2 3,39E‐3 4,04E‐1 MND 1,14E‐4 MND MND MND MND MND MND MND MNR MNR MNR 5,14E‐3 ‐1,74E‐4 Ozone Depletion kg CFC-11e 1,86E‐8 4,06E‐9 1,05E‐9 2,37E‐8 MND 4,43E‐12 MND MND MND MND MND MND MND MNR MNR MNR 2,29E‐9 ‐2,02E‐13 Acidification kg SO2e 8,23E‐4 7,9E‐5 7,25E‐6 9,09E‐4 MND 1,46E‐7 MND MND MND MND MND MND MND MNR MNR MNR 4,43E‐5 ‐5,51E‐7 Eutrophication kg Ne 1,09E‐4 8,97E‐6 1,55E‐6 1,2E‐4 MND 2,17E‐8 MND MND MND MND MND MND MND MNR MNR MNR 5,31E‐6 ‐1,1E‐8 POCP (“smog”) kg O3e 1,57E‐2 1,62E‐3 1,09E‐4 1,74E‐2 MND 2,94E‐6 MND MND MND MND MND MND MND MNR MNR MNR 1,09E‐3 ‐7,05E‐6 ADP-fossil MJ 1,51E‐1 3,63E‐2 6,38E‐3 1,93E‐1 MND 6,65E‐5 MND MND MND MND MND MND MND MNR MNR MNR 2,13E‐2 ‐1,35E‐3

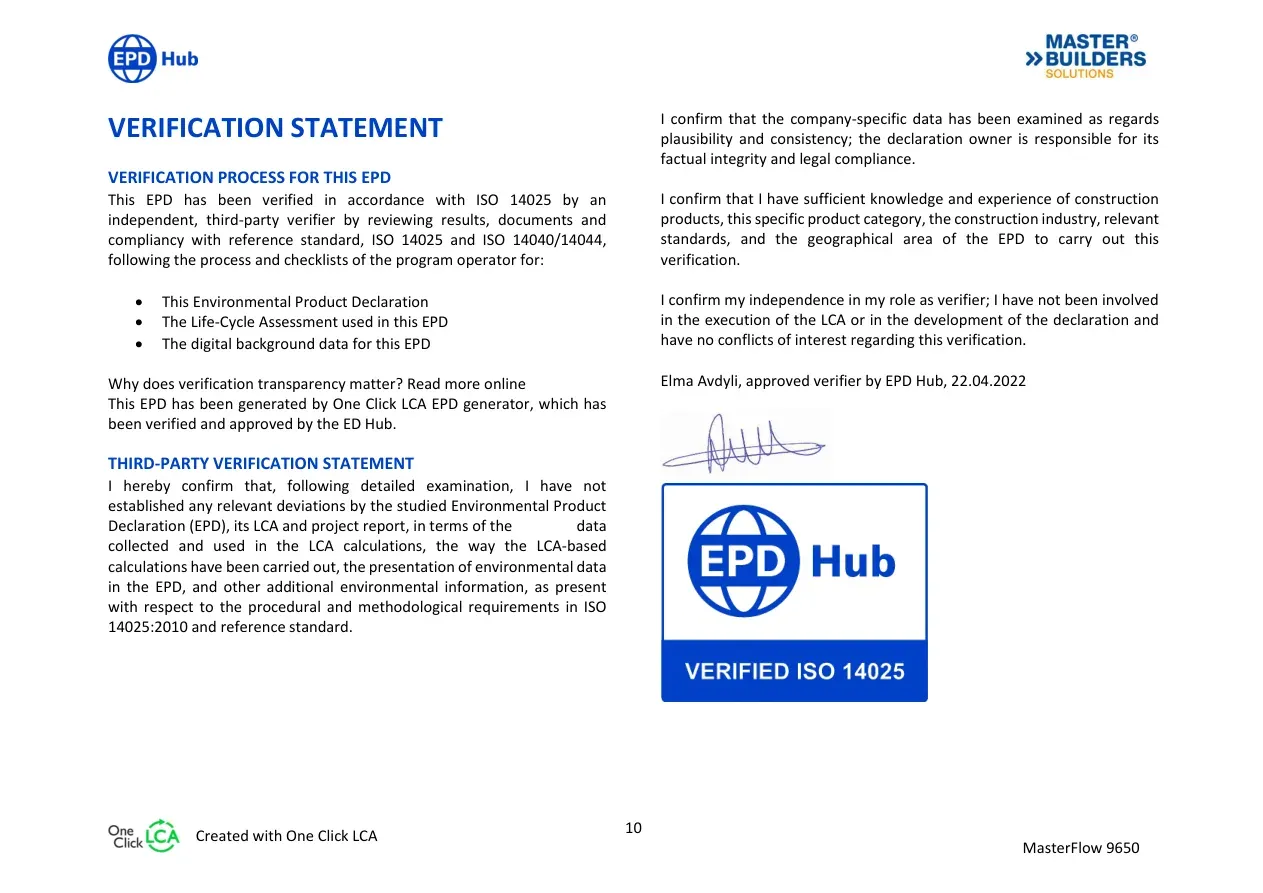

10 MasterFlow 9650 Created with One Click LCA VERIFICATION STATEMENT VERIFICATION PROCESS FOR THIS EPD This EPD has been verified in accordance with ISO 14025 by an independent, third-party verifier by reviewing results, documents and compliancy with reference standard, ISO 14025 and ISO 14040/14044, following the process and checklists of the program operator for: • This Environmental Product Declaration • The Life-Cycle Assessment used in this EPD • The digital background data for this EPD Why does verification transparency matter? Read more online This EPD has been generated by One Click LCA EPD generator, which has been verified and approved by the ED Hub. THIRD-PARTY VERIFICATION STATEMENT I hereby confirm that, following detailed examination, I have not established any relevant deviations by the studied Environmental Product Declaration (EPD), its LCA and project report, in terms of the data collected and used in the LCA calculations, the way the LCA-based calculations have been carried out, the presentation of environmental data in the EPD, and other additional environmental information, as present with respect to the procedural and methodological requirements in ISO 14025:2010 and reference standard. I confirm that the company-specific data has been examined as regards plausibility and consistency; the declaration owner is responsible for its factual integrity and legal compliance. I confirm that I have sufficient knowledge and experience of construction products, this specific product category, the construction industry, relevant standards, and the geographical area of the EPD to carry out this verification. I confirm my independence in my role as verifier; I have not been involved in the execution of the LCA or in the development of the declaration and have no conflicts of interest regarding this verification. Elma Avdyli, approved verifier by EPD Hub, 22.04.2022
